Moving The Pen Carriage

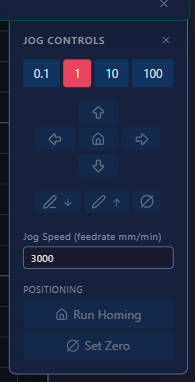

• You can move the pen head by hand or by using the “Controls” panel jog wheel (fig. 1, B).
• Click on the segments of the job wheel to move the head in that direction.
• Outer segments move 100mm, while inner segments move 10mm, 1mm and 0.1mm respectively.
• To move the pen up and down, use the “Pen Up” and “Pen Down” buttons.
• Note: The Z axis controls may or may not move the pen up or down depending on the configuration and tool head.
